UG-1094/U BNC Female Jack Chassis Mount
Description
Description

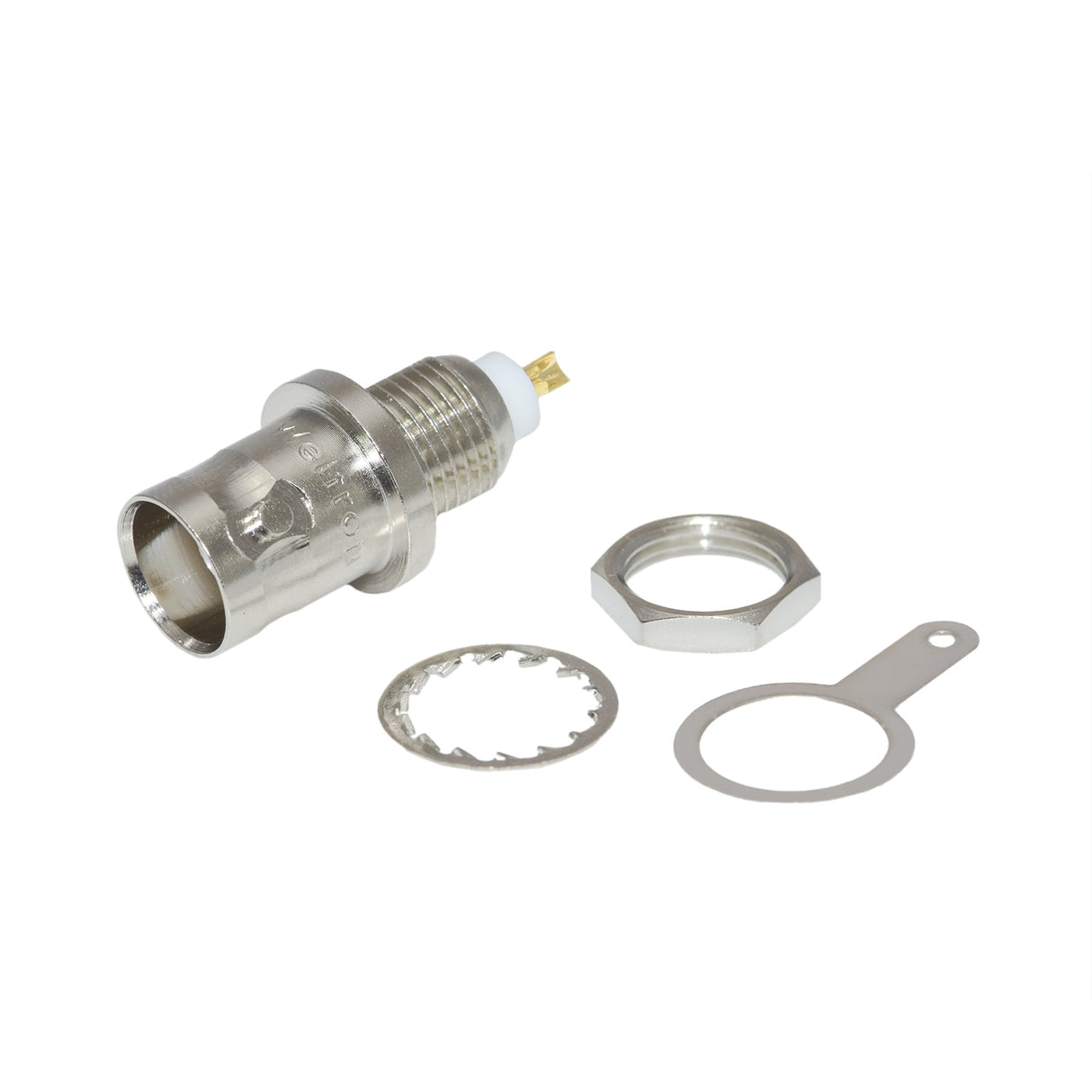

UG-1094/U BNC Female Jack Chassis Mount Connector
The UG-1094/U BNC Female Jack Chassis Mount Connector is designed for secure and reliable panel installations. Featuring a solder type termination, it provides a robust connection ideal for RF, broadcast, and communication systems.
With a consistent 50Ω impedance, this BNC female jack ensures optimal signal transmission and is built to meet professional-grade performance standards. Its chassis mount design guarantees a firm and stable installation on equipment panels.
Key Features
- BNC female jack with chassis mount design for secure panel installations
- Solder type termination for reliable and durable connections
- 50Ω impedance for consistent signal quality in RF and video systems
- Compatible with standard BNC male connectors
- Durable construction for long-lasting performance in demanding environments
- Ideal for communication equipment, test instruments, and broadcast setups
Frequently Asked Questions
What is the UG-1094/U BNC chassis mount connector used for?
This connector is used for mounting BNC female jacks onto equipment panels, providing a stable connection point for RF, video, and communication systems.
How is the UG-1094/U BNC connector terminated?
The UG-1094/U connector uses a solder type termination, ensuring a secure and reliable electrical connection to the panel-mounted device.
Is the UG-1094/U suitable for 75Ω applications?
While designed for 50Ω systems, it can physically connect to 75Ω cables, but using it in a 75Ω application may cause impedance mismatch and affect signal quality.
What materials are used in the construction of the UG-1094/U?
The connector features a durable metal body designed to withstand frequent connections and disconnections, ensuring longevity and reliability.
