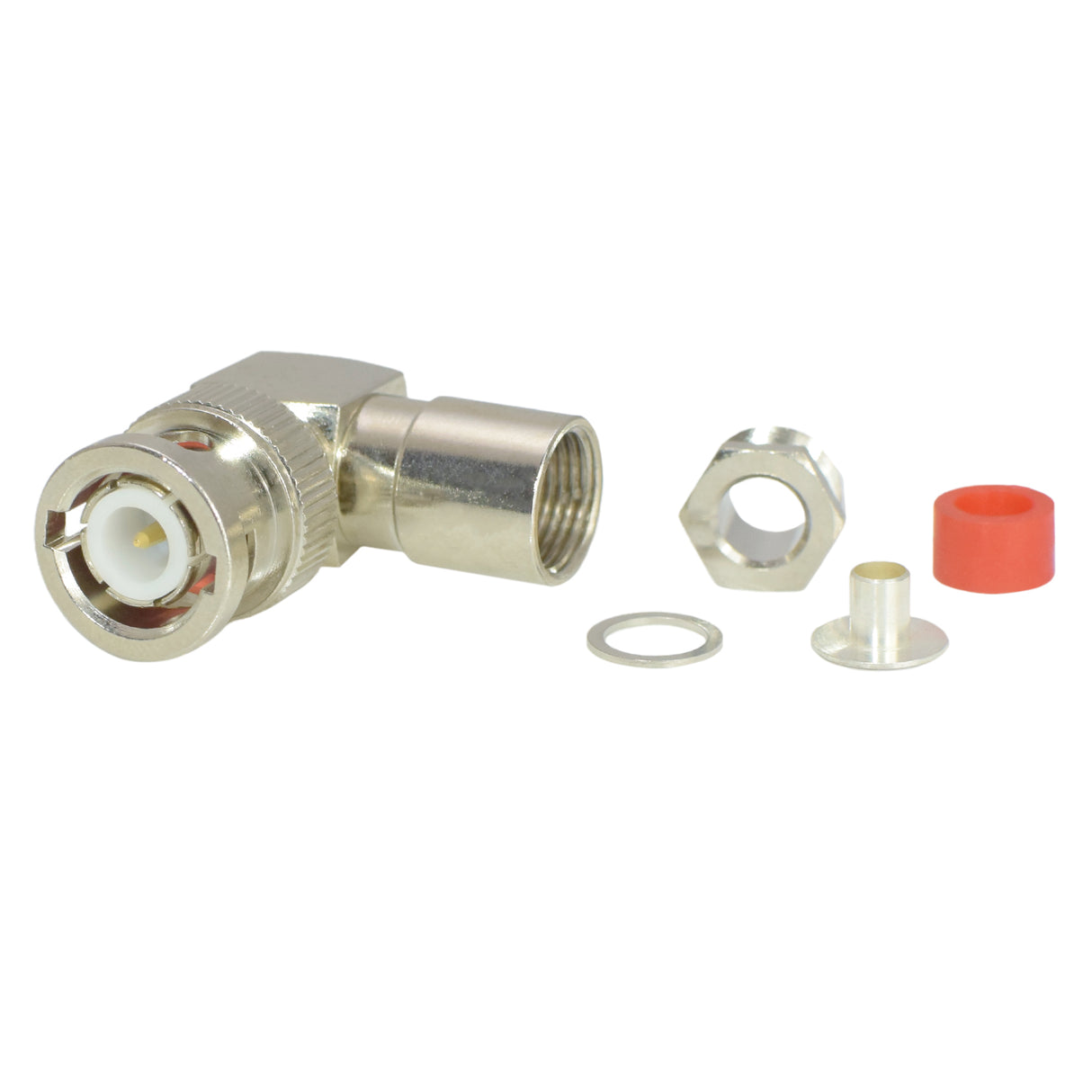

BNC Male Plug Right Angle Solder Connector for RG-223
This BNC Male Plug Right Angle Solder Connector is engineered for precise connectivity in compact spaces. It offers reliable signal performance and secure solder termination for RG-223, RG-142, and RG-55 coaxial cables.
With its right-angle design and 50Ω impedance, this connector is ideal for RF, video, and instrumentation applications requiring efficient cable routing and minimal signal loss.
Key Features
- Right angle BNC male plug with solder termination
- Compatible with RG-223, RG-142, and RG-55 coaxial cables
- 50Ω impedance for optimal RF performance
- Durable metal housing for secure connections
- Ideal for tight-space installations and low-loss signal transmission
What cable types does this BNC connector support?
It supports RG-223, RG-142, and RG-55 coaxial cables for RF and video applications.
When should I use a right angle BNC connector?
Use it when space is limited and cables need to be routed at a 90-degree angle from the connector interface.
Is soldering required for installation?
Yes, the connector requires soldering for a secure electrical connection to the coaxial cable.
What is the benefit of a 50Ω impedance?
It ensures compatibility with standard RF systems, minimizing signal reflection and maintaining transmission quality.
