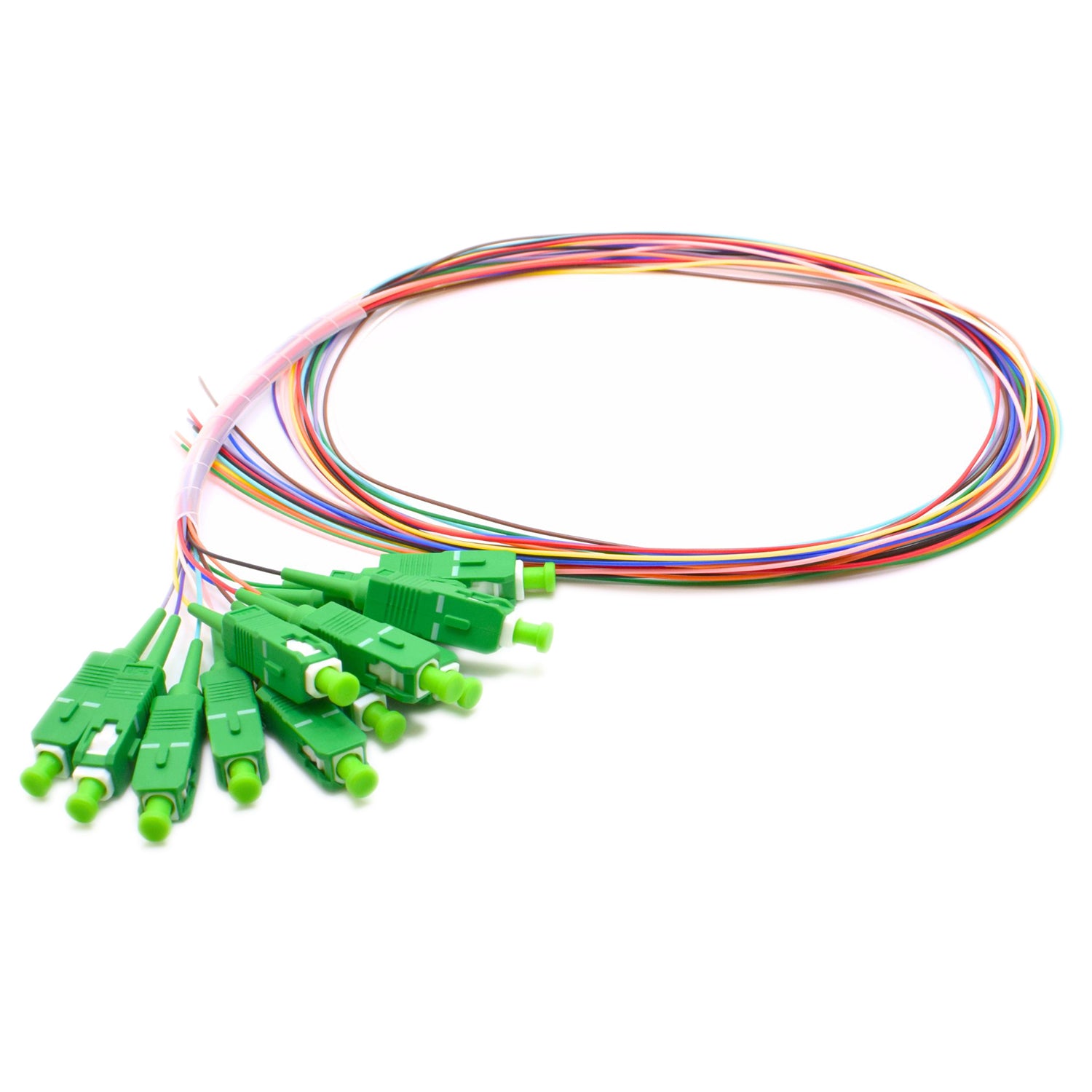

1 Meter (3ft) SC APC 12 Fibers OS2 Single Mode Unjacketed Color-Coded PVC (OFNR) 0.9mm Fiber Optic Pigtail (G.657.A1 Tight Buffer)
1 Meter (3ft) SC APC 12 Fibers OS2 Single Mode Unjacketed Color-Coded PVC (OFNR) 0.9mm Fiber Optic Pigtail (G.657.A1 Tight Buffer) is backordered and will ship as soon as it is back in stock.
1 Meter (3ft) SC APC 12 Fibers OS2 Single Mode Unjacketed Color-Cod...
Need Custom Cables?
Get a quote using our custom assembly cable calculator.
Description
Description
1 Meter (3ft) SC APC 12 Fibers OS2 Single Mode Fiber Optic Pigtail
The 1 Meter SC APC 12 Fibers OS2 Single Mode Fiber Optic Pigtail is engineered for precision fiber fusion splicing in demanding network environments. Each pigtail is color-coded for simplified installation and identification during splicing.
Featuring SC APC connectors and G.657.A1 bend-insensitive fiber, this 0.9mm unjacketed pigtail supports long-distance, high-speed data transmission with low insertion loss and high return loss. It's built for performance in enterprise backbones, telecom infrastructure, and data centers.
Key Features
- Length: 1 meter (3ft)
- Connector type: SC APC simplex on each fiber
- 12 OS2 single-mode fibers for high-density terminations
- G.657.A1 bend-insensitive fiber enhances flexibility and reliability
- Color-coded fibers for fast and accurate splicing
- 0.9mm tight buffer construction for compact routing
- Unjacketed design with PVC (OFNR) riser rating for telecom and enterprise use
Frequently Asked Questions
What applications is this pigtail best suited for?
This pigtail is ideal for use in data centers, telecom systems, and enterprise networks that require high-speed and long-distance fiber optic transmission.
Why choose a 12-fiber color-coded design?
The color-coded design simplifies identification and splicing, especially in high-density environments where managing multiple fibers is essential.
What makes G.657.A1 fiber important?
G.657.A1 fiber is bend-insensitive, which allows the pigtail to be installed in tight spaces without signal degradation, ensuring consistent performance.
Is this pigtail compatible with all SC APC panels?
Yes, it is universally compatible with standard SC APC adapter panels and enclosures used in optical network installations.
Can this pigtail be used for outdoor applications?
It is designed for indoor riser-rated applications. For outdoor use, a jacketed and weather-resistant version is recommended.
