Trunk cables and breakout cables solve two very different problems in data center fiber design. Understanding the difference helps you choose the right cabling path for density, compatibility, and future scalability.
Introduction
MPO and MTP connectors are often used inside structured cabling systems, but the cable type around them matters just as much as the connector itself. Two of the most common options are trunk cables and breakout cables, and they serve different roles in the physical layer.

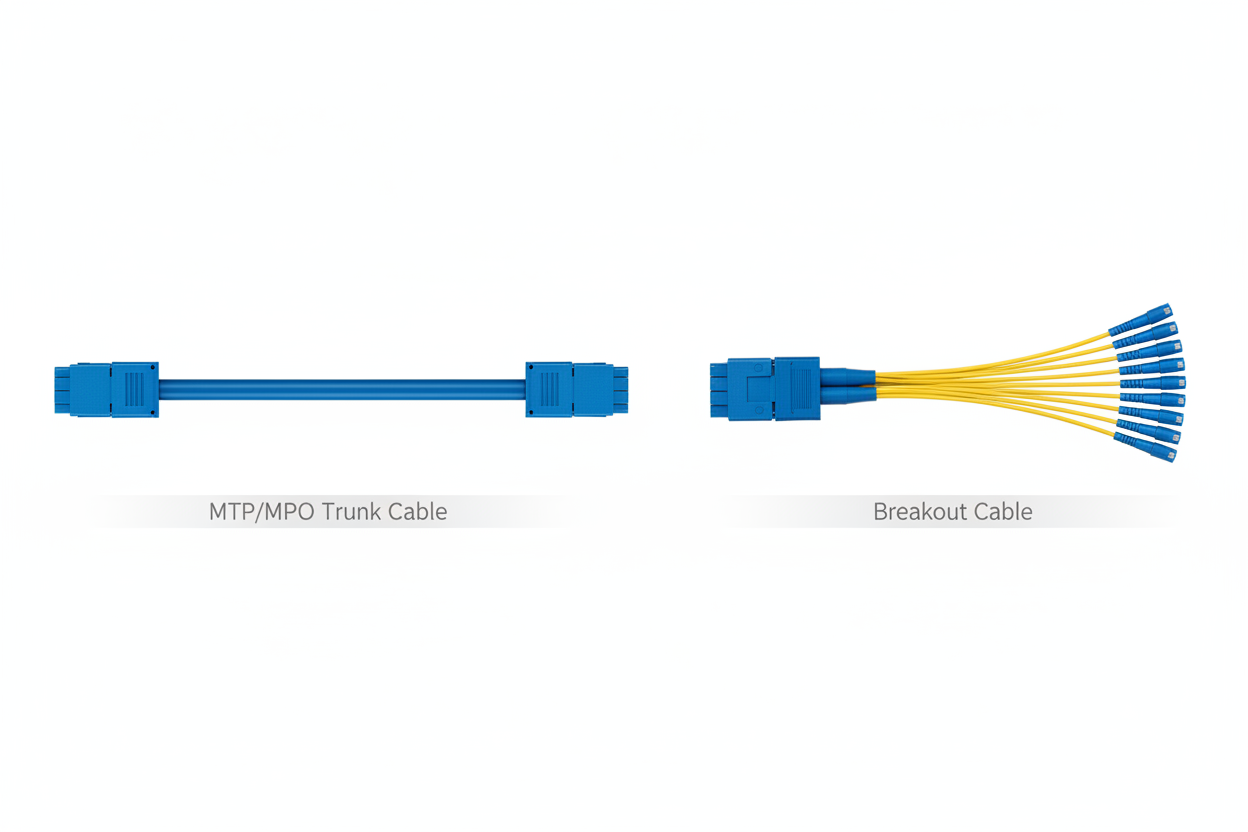

A trunk cable is built to move multiple fibers between major infrastructure points, while a breakout cable is designed to fan one connection into several smaller connections. In practical terms, one is built for backbone transport and the other is built for distribution or fan-out.
In hyperscale and enterprise data centers, choosing the right cable type can simplify routing, improve upgrade planning, and reduce wasted infrastructure. If you are working with 40G, 100G, or 400G networks, this choice becomes especially important.
What A Trunk Cable Is
A trunk cable is a multi-fiber cable designed to carry a bundle of fibers between two major points in the network. It is commonly used to connect patch panels, cassettes, distribution frames, or structured cabling zones.
Trunks are usually the backbone of a fiber system. They are not meant to fan out into multiple single connections at the cable itself; instead, they support a larger structured architecture that can later break out through panels, cassettes, or patch cords.
A good example is a hyperscale row where a trunk cable runs from one patch field to another. That trunk becomes the fixed pathway that supports the wider fiber plant without cluttering the rack with dozens of separate single-fiber runs.
What A Breakout Cable Is
A breakout cable takes a multi-fiber connection and splits it into multiple smaller connectors, usually to connect equipment that does not use the same multi-fiber interface. This makes it useful when a backbone link needs to be distributed into several individual ports.
Breakout cables are often used when a high-density port needs to be converted into several lower-density connections. That can happen at the edge of a network, in migration scenarios, or anywhere one side of the channel does not match the other.
For example, a 400G port may need to fan out into four 100G connections depending on the optics and switch architecture. In that case, breakout cabling becomes the practical bridge between two different speeds or port types.
Trunk Vs Breakout At A Glance
| Factor | Trunk Cable | Breakout Cable |
|---|---|---|
| Primary purpose | Backbone transport between major points | Fan-out from one high-density connection to multiple smaller ones |
| Typical use | Panels, cassettes, structured cabling paths | Equipment interconnects, migration, port conversion |
| Design goal | Clean, repeatable backbone routing | Convert or distribute lanes efficiently |
Why The Difference Matters
If you confuse trunk and breakout cable types, you can end up with a cabling plant that does not match the network architecture. That can lead to unnecessary adapters, wrong fiber counts, or links that cannot be terminated the way you intended.
The right choice also affects cost and maintainability. A trunk is usually cleaner for backbone use, while a breakout cable can save time when one port must feed multiple endpoints.
In a large facility, the goal is not just to make the connection work once. It is to build a fiber system that is easy to understand, scale, and troubleshoot later.
400G To 4x100G
One of the most common breakout scenarios is a 400G port that needs to support four 100G connections. In that case, the cable or cassette design must fan out the lanes in a way that matches the transceiver and switch architecture.
This is especially useful during migration phases, where not all equipment has been upgraded at the same time. The breakout cable gives the team flexibility to bridge old and new infrastructure without redesigning the whole room.
That flexibility is one of the biggest reasons breakout cabling remains important in modern data centers. It helps operators move forward without forcing a complete rip-and-replace.
Structured Backbone
Imagine a data center where multiple switch rows are connected through a structured fiber backbone. In that setup, trunk cables are the best fit because they create a clean and consistent transport path between panels and cassettes.
The backbone stays organized, the patching layers stay manageable, and future upgrades become easier because the main fiber route is already defined. That is exactly the kind of environment where trunk cabling shines.
If the same site needed to connect that backbone to smaller single-fiber devices, breakout cables or cassettes could then be used at the edge of the system. That is how the two cable types often work together.
When To Use A Trunk Cable
Use a trunk cable when you need a clean backbone connection between two structured points in the network. It is the right choice for large-scale routing, standardized cable plants, and highly repeatable installations.
Trunks are especially strong when the network design already assumes cassettes, patch panels, or structured distribution. They reduce clutter and make the system easier to document.
If the goal is long-term maintainability and a consistent architecture, trunk cabling is usually the stronger option.
When To Use A Breakout Cable
Use a breakout cable when one high-density connection needs to split into multiple lower-density connections. It is the right choice for fan-out, migration, or mixing port types within the same system.
Breakout is also useful when the network has mixed-speed equipment and you need a practical bridge between different layers of the design. That makes it valuable in both upgrade projects and specialized deployment zones.
If the environment is changing quickly, breakout cabling can provide the flexibility the team needs without forcing a larger redesign.
Common Mistakes
One common mistake is buying a breakout cable when the design actually needs a trunk. Another is assuming a trunk can automatically replace a breakout solution without checking the port mapping.
Teams also sometimes overlook polarity, fiber count, and connector gender when selecting the cable type. Those details matter just as much as the trunk-versus-breakout decision itself.
The safest approach is to document the link type, transceiver type, and intended port mapping before ordering anything. That keeps surprises out of the deployment.
How To Choose The Right One
Start by asking whether the link is meant to remain a structured backbone or whether it needs to fan out to multiple ports. That answer usually makes the trunk-versus-breakout decision much easier.
Next, confirm the transceiver architecture, fiber count, polarity, and connector compatibility. The best cable is the one that matches the full design, not just the connector on the end.
Standardization matters too. If one cable type can be used consistently across the site, that usually makes operations simpler and lowers the chance of errors during installation.
Conclusion
Trunk cables and breakout cables are both essential parts of a high-density fiber strategy, but they are built for different jobs. Trunks support the backbone, while breakout cables handle fan-out and port conversion.
When you match the cable type to the network architecture, the whole system becomes easier to manage, scale, and troubleshoot. That is what makes the difference in real-world data center deployments.
