Polarity is one of the most important and most misunderstood parts of MPO/MTP cabling. If the fibers are mapped incorrectly, transmit and receive lanes may not line up, and the link will fail even if every connector looks physically fine.
Introduction
In high-density fiber systems, the connector is only part of the story. The real performance of an MPO or MTP channel depends on how each fiber is mapped from one end of the link to the other, and that mapping is called polarity.
Polarity matters because modern optical networks rely on precise transmit and receive alignment. If the fiber paths are crossed incorrectly, the switch or transceiver may not see the right signals, and troubleshooting can become time-consuming.
This is especially important in hyperscale data centers, where thousands of links may be deployed in parallel and even a small documentation error can create widespread issues. Understanding polarity before installation saves time, money, and frustration.
What Polarity Means
Polarity refers to how the individual fibers in an MPO or MTP assembly are arranged from one end of the channel to the other. In simple terms, the transmit lane at one end must connect to the correct receive lane at the other end for the link to work.
Unlike a single-fiber patch cord, where the mapping is usually obvious, multi-fiber connectors carry several lanes inside one shell. That makes polarity planning essential because the physical connector alone does not tell you whether the path is mapped correctly.
Think of it like organizing a group of wires inside a single cable bundle. If the lanes are not lined up in the right order, the system may appear installed correctly but still fail to pass light properly.
Why Polarity Matters
In practice, polarity controls whether the transmit and receive paths are aligned correctly across the full channel. If the mapping is wrong, the optics may never establish a usable link, even though the cabling appears clean and properly seated.
That makes polarity one of the first things to verify during design, procurement, and installation. It is much easier to choose the right polarity method before deployment than to trace and correct miswired fiber paths afterward.
Polarity also affects scalability. A network that is easy to expand needs a repeatable polarity standard so technicians can add rows, pods, or cabinets without guessing how the fibers were mapped.

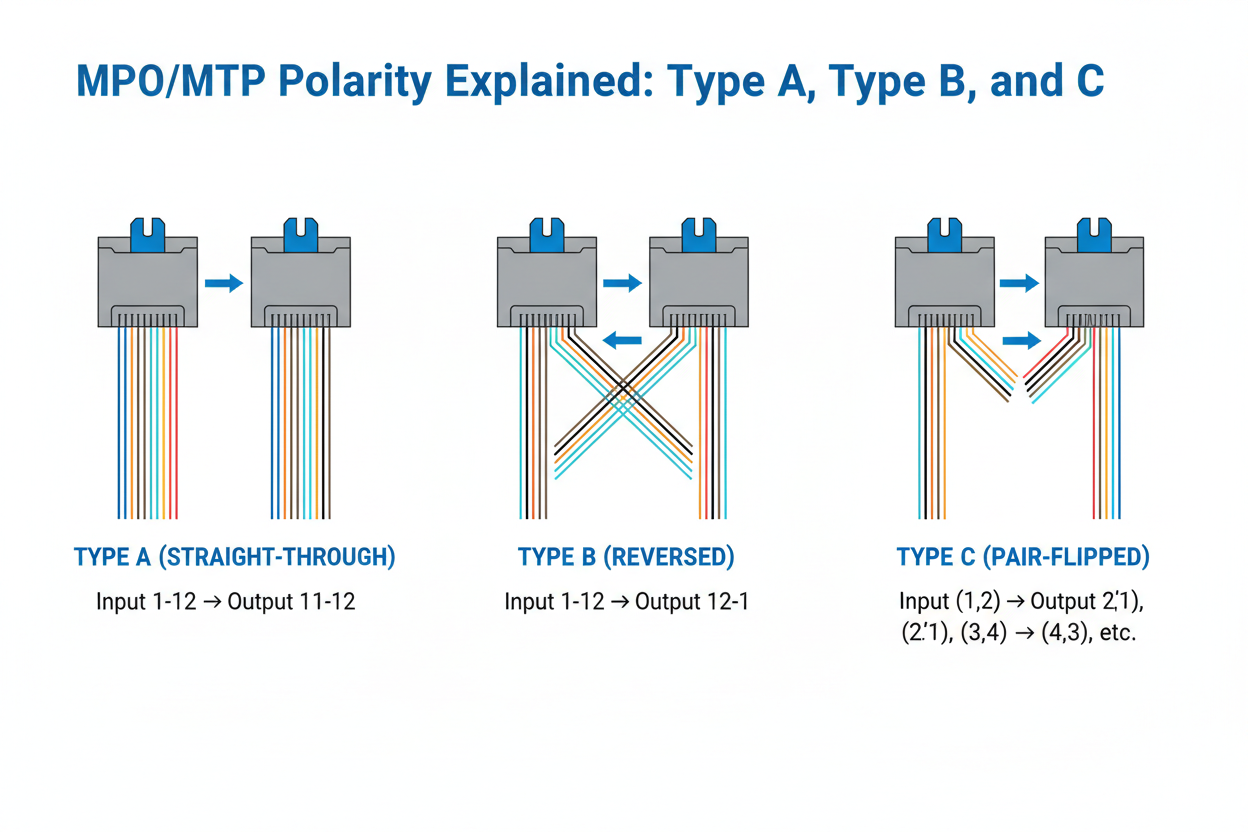

Type A Polarity
Type A is often described as a straight-through polarity method. The fiber order is maintained in a way that preserves a predictable path from one end of the channel to the other, with the necessary crossover handled at the appropriate point in the system architecture.
This type is commonly used in structured cabling designs where the trunk, cassette, and patching layout is carefully planned. Because the mapping is consistent and repeatable, Type A can be easier to standardize in large installations.
A real-world example would be a data center using MPO trunks between patch panels and cassettes, where the team wants a clean, predictable mapping method across multiple rows. In that case, Type A can support a disciplined and easy-to-document design.
Type B Polarity
Type B is another common polarity method and is often associated with a full reversal of fiber order across the channel. In practice, that means the fibers are arranged so that one end aligns with the opposite end in a mirrored pattern.
This approach is widely used in parallel optics environments because it can create a clean end-to-end mapping when the system is built around the right trunk and patching scheme. It is especially important to follow the chosen method consistently across the full channel.
For example, a team building a 100G or 400G link using structured cabling may choose Type B so the entire system follows a standardized mirrored pathway. That makes documentation easier and reduces the chance of accidental mispatching later.
Type C Polarity
Type C is typically described as pair-wise reversal, where the fiber arrangement is crossed in pairs rather than through the entire connector in one full reversal. This creates a different mapping behavior than Type A or Type B.
Because the wiring pattern is more specialized, Type C is usually used only when the architecture calls for it. It can be useful in certain breakout or cassette designs, but it is not the default choice for every deployment.
The main takeaway is that Type C should be used intentionally, not casually. If the design documentation does not call for it, choosing Type C by mistake can lead to unnecessary troubleshooting during turn-up.
How The Types Differ
| Type | Basic Mapping Idea | Typical Use |
|---|---|---|
| Type A | Straight-through style with structured mapping | Structured cabling with trunks and cassettes |
| Type B | Full reversal or mirrored mapping | Parallel optics and standardized high-speed links |
| Type C | Pair-wise reversal | Specialized breakout or cassette designs |
Real-World Example: 400G Migration
A company upgrading a spine-leaf fabric to 400G may use MPO trunks with a standardized polarity method across the entire row. The goal is to keep the deployment predictable so technicians can install and verify links quickly.
If the polarity is documented correctly, the team can swap transceivers or cassettes without rebuilding the fiber plant. That is the kind of operational simplicity that makes structured cabling worth the upfront planning.
Real-World Example: AI Cluster Deployment
In an AI cluster, the density of cabling can be extreme, and even small polarity mistakes can ripple across a large number of connections. A team may standardize on one polarity method for trunks, then use matching cassettes and labeled patch cords to keep the whole environment consistent.
That consistency helps operations teams during moves, adds, and changes. It also reduces the risk that a technician will connect the correct cable to the wrong side of the channel because the design pattern was not obvious.
In fast-moving environments, polarity discipline is not just a technical preference. It is part of keeping the site maintainable at scale.
Common Mistakes
One of the biggest mistakes is assuming every MPO/MTP cable will work regardless of polarity. Another is mixing trunk, cassette, and patching components without verifying the mapping method first.
Teams also sometimes label the physical cable correctly but fail to document the channel mapping in a way the next installer can follow. When that happens, troubleshooting becomes much harder than it needs to be.
A third mistake is treating polarity as an afterthought during procurement. If the BOM does not call it out clearly, a wrong-order cable can arrive onsite and delay the build.
How To Choose The Right Polarity
Start with the architecture. If the design uses trunks and cassettes, the polarity method should be chosen to fit that system, not guessed later in the field.
Then verify the transceiver lane mapping, the connector gender, and the fiber count. Polarity only works when the rest of the channel is designed around the same assumptions.
The safest approach is to standardize one method across the project and document it clearly. That keeps installation simple and makes long-term support much easier.
Internal Links For The Silo
Conclusion
MPO/MTP polarity determines whether the fibers in a multi-lane optical channel are mapped correctly from end to end. If the polarity is wrong, the link may fail even though the cables and connectors look fine.
Once you understand Type A, Type B, and Type C, it becomes much easier to design, install, and troubleshoot MPO/MTP cabling in a consistent way. That is especially valuable in hyperscale and high-speed data center environments where repeatability matters at scale.
